1600mm Paper Roll To Sheet Cutting Machine , ruiting Kraft Paper Cutting Machine

Name: 1600mm Paper Roll To Sheet Cutting Machine ruiting Kraft Paper Cutting Machine
Brand: ruiting
Price: 1 USD

Quality 1600mm Paper Roll To Sheet Cutting Machine , ruiting Kraft Paper Cutting Machine for sale

Brand Name : ruiting

Model Number : RTHQ-1600

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 30 working days

Packaging Details : wooden case

Condition : New

Weight : 4800KG

Dimension(l*w*h) : 6000*2400*1300MM

Power(w) : 18kw

Speed : 0-200m/min

Product name : 1600 Automatic Roll To Sheet Kraft Paper Cutting Machine

Max cutting length : 1500mm

Voltage : 380V/220V

Warranty : 1 Year

Computerized : Yes

Contact Now

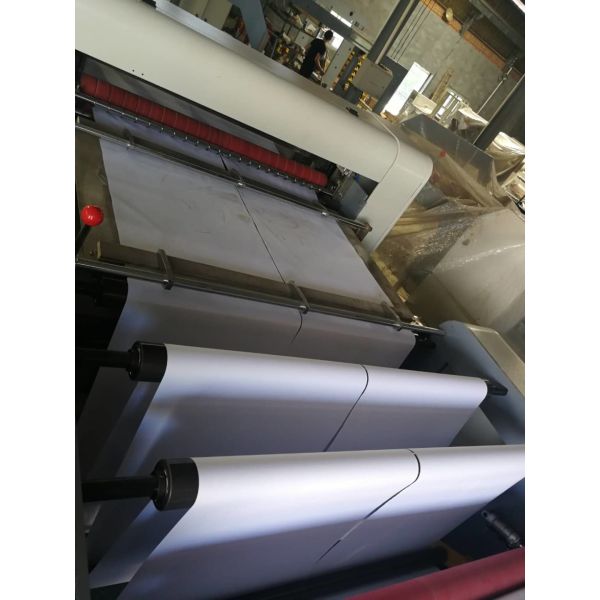

1600 Automatic Roll To Sheet Kraft Paper Cutting Machine

Product Description

This machine can cutting material from roll to sheets. It can adjust different material, like paper, film, PVC , nonwven fabric and so on material.

Main features

1) Frequency converter speed control of the host, PLC touch screen control system,

2)Automatic counting, automatic fixed length, alarm stop

3) The motor adopts three-phase asynchronous frequency converter motor 2.2KW

4) The frequency converter adopts sine 2.2kw

5)Actively adopt servo control positioning method

6)With one pcs 3 inch air shaft for unwinding

7)Web guide system

Main Technical Specification:

Cross cutting machine technical specification
Max. Cutting width	1600mm
Max.diameter of material	Φ1400mm
Min.width of cutting	50mm
Power Supplier	18kw
Cutting precision	±0.2mm
Fixed speed	20-200times/min ( 2.5 bag/mins, 500pcs/bag)
Length cutting width	200-1500mm
Overall dimensions(LWH)	600024001400mm
Machine weight	4800KG
